ThinkPad X1 Carbon Gen 12 + MONITOR LCD 32" T32UD-40

Technical Specifications

• Description:

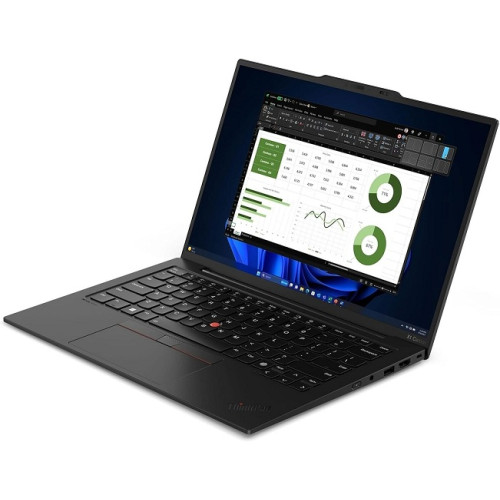

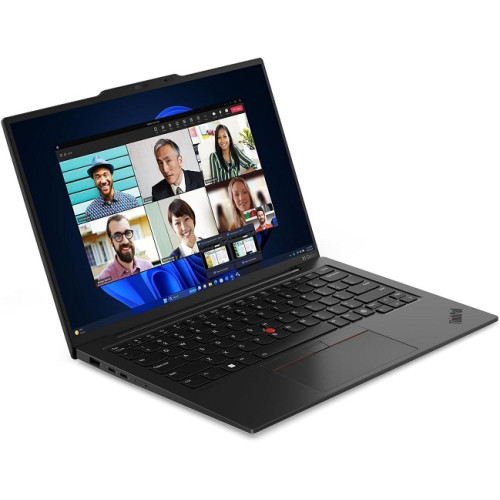

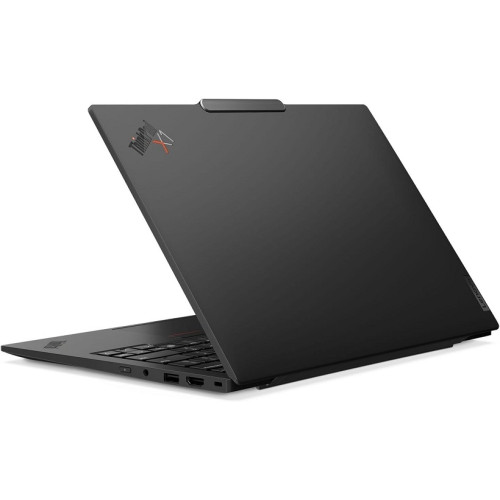

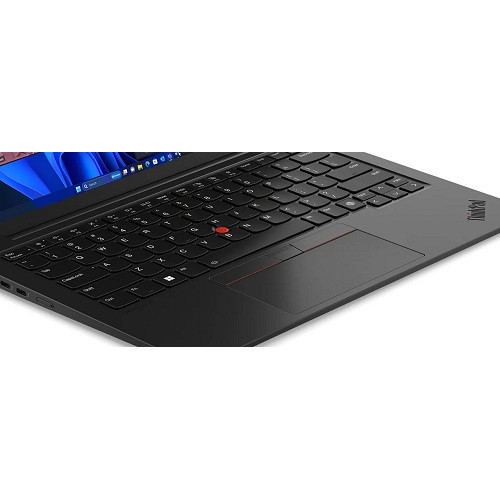

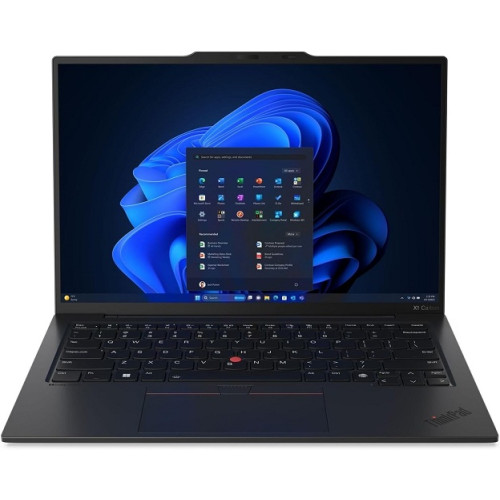

  ThinkPad X1 Carbon Gen 12
  Built for business with cuttingedge technology.
  The ultimate device for any mobile worker or executive, ThinkPad X1 Series combines the latest productivity and security technologies with sleek
  and lightweight designs.

• Vendor Homepage: psref.lenovo.com/Detail/ThinkPad_X1_Carbon_Gen_12?M=21KC006LRI
• Name: NB X1 CARBON G12 CU7-155U 14"/32GB/1TB 11P 21KC006LRI LENOVO
• Category Code: NB
• NB features: Business
• Product line: Commercial
• NB Family name: ThinkPad
• Product model code: X1 Carbon Gen 12
• CPU Family name: Intel Core Ultra
• CPU Model Number: u7-155H
• Clock speed: 1700
• Screen size: 14"
• Touchscreen: Yes
• Native resolution: 1920x1200
• Screen type: Non-Glare IPS
• Screen refresh rate: 60Hz
• Memory (RAM): 32GB
• Max memory (RAM): 32GB
• Memory type: LPDDR5x
• Frequency speed: 6400
• SSD Capacity: 1TB
• SSD type: M.2 2280 PCIe 4.0x4 Performance NVMe
• ODD type: none
• Graphics controller: Integrated
• VGA card: Integrated Intel Graphics
• Graphics memory: Integrated
• Integrated LAN: Gigabit
• KB language: ENG
• Keyboard backlight: Yes
• Battery cells: 3 cells
• HDMI: 1
• USB 3.2: 2
• USB-C w/Thunderbolt: 2
• Headphones jack: 1
• Wireless LAN: 802.11ax
• Bluetooth: Yes
• Microphone: Built-in
• Speakers: Yes
• Built-in WebCam: FHD
• Operating System: Windows 11 Pro
• Colour: Black
• Width: 312.8
• Height: 14.96
• Depth: 214.75
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.0105
• Product Net Weight: 1.09
• Unit Calculated Weight: 3

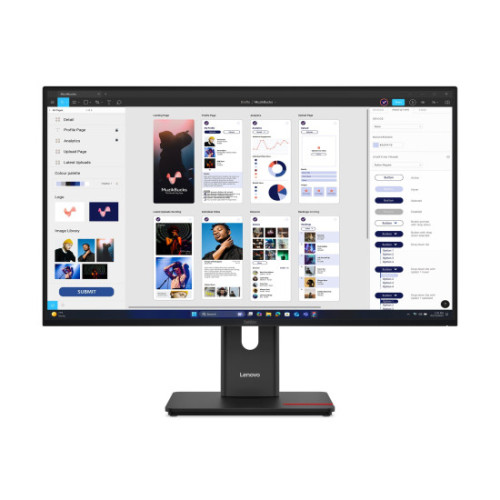

Technical Specifications for Monitor

• Description:
  • 80.0cm (31.5") 4K Ultra HD 3840 x 2160 W-LED IPS
  • 6ms, 16:9, 350cd/m², 1500:1
  • USB, HDMI, DisplayPort

• Summary: Lenovo ThinkVision T32UD-40. Display diagonal: 80 cm (31.5"), Display resolution: 3840 x 2160 pixels, HD type: 4K Ultra HD, Display technology: LCD, Response time: 6 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in USB hub. VESA mounting, Height adjustment. Product colour: Black
• Vendor Homepage: https://www.lenovo.com/
• Name: MONITOR LCD 32" T32UD-40/64B0GAT1EU LENOVO
• Category Code: LC3
• Display diagonal: 31.5
• Display resolution: 3840 x 2160
• HD type: 4K Ultra HD
• Native aspect ratio: 16:9
• Display technology: LCD
• Panel type: IPS
• LED backlight: Yes
• Backlight type: W-LED
• Touchscreen: No
• Display brightness (typical): 350
• Response time: 6
• Anti-glare screen: Yes
• Screen shape: Flat
• Contrast ratio (typical): 1500:1
• Contrast ratio (dynamic): 3000000:1
• Maximum refresh rate: 60
• Viewing angle, horizontal: 178
• Viewing angle, vertical: 178
• Display number of colours: 1.07 billion colours
• Response time (fast): 4
• Pixel pitch: 0.1816 x 0.1816
• Pixel density: 140
• Viewable size, horizontal: 697.3
• Viewable size, vertical: 392.2
• High Dynamic Range (HDR) supported: Yes
• High Dynamic Range (HDR) technology: High Dynamic Range 10 (HDR10)
• Colour depth: 10
• Colour gamut standard: Rec. 709
• Colour gamut: 99
• sRGB coverage (typical): 99
• NVIDIA G-SYNC: No
• AMD FreeSync: No
• Low Blue Light technology: Yes
• Windows operating systems supported: Windows 10/Windows 11
• Built-in speaker(s): No
• Built-in microphone: No
• Built-in camera: No
• Product colour: Black
• Colour name: Eclipse Black
• Feet colour: Black
• Built-in USB hub: Yes
• USB upstream port type: USB Type-C
• Number of upstream ports: 1
• Number of USB Type-C upstream ports quantity: 1
• USB Type-A downstream ports quantity: 3
• USB Type-C downstream ports quantity: 1
• USB Type-C DisplayPort Alternate Mode: Yes
• USB Power Delivery (USB PD): Yes
• USB Power Delivery up to: 100
• HDMI: Yes
• HDMI ports quantity: 1
• HDMI version: 2.1
• DisplayPorts quantity: 1
• DisplayPort version: 1.4
• Headphone out: No
• Ethernet LAN: Yes
• VESA mounting: Yes
• Panel mounting interface: 100 x 100
• Cable lock slot: Yes
• Cable lock slot type: Kensington
• Height adjustment: Yes
• Adjustable height (max): 155
• Pivot: Yes
• Pivot angle: -90 - 90
• Swivelling: Yes
• Swivel angle range: -45 - 45
• Tilt adjustment: Yes
• Tilt angle range: -5 - 23.5
• Energy efficiency class (SDR): F
• Energy efficiency class (HDR): G
• Energy consumption (SDR) per 1000 hours: 30
• Energy consumption (HDR) per 1000 hours: 45
• Power consumption (typical): 25.5
• Power consumption (standby): 0.5
• Power consumption (max): 195
• Power consumption (off): 0.3
• AC input voltage: 100 - 240
• AC input frequency: 50/60
• Power supply type: Internal
• Energy efficiency scale: A to G
• Width (with stand): 714.2
• Depth (with stand): 218
• Height (with stand): 594.3
• Weight (with stand): 9200
• Width (without stand): 714.2
• Depth (without stand): 46.5
• Height (without stand): 413
• Weight (without stand): 6300
• Bezel width (side): 2
• Bezel width (top): 2
• Bezel width (bottom): 11.4
• Package width: 950
• Package depth: 139
• Package height: 520
• Package weight: 13500
• Stand included: Yes
• Cables included: DisplayPort/Power/USB Type-C to USB Type-C
• Quick start guide: Yes
• DisplayPort cable length: 1.8
• Power cable length: 1.8
• Ethernet LAN data rates: 1000
• Ethernet LAN (RJ-45) ports: 1
• Certification: Energy Star Certified, TCO 10.0, TCO Edge 2.1, EPEAT Gold, EU Energy Efficiency Level (Level-F) TÃœV Rheinland Eye Comfort 4 Stars, Eyesafe Display 2.0, TÃœV Low Blue Light (Hardware solution)
• Units per Pallet: 0
• Unit Calculated Volume: 0.07258
• Product Net Weight: 7
• Unit Calculated Weight: 7
• Energy efficiency class: F
• Data Sheet (Link): https://eprel.ec.europa.eu/api/product/2328639/fiches?language=EN
• EPREL Version Number: 1
• EPREL Registration Number: 2328639
